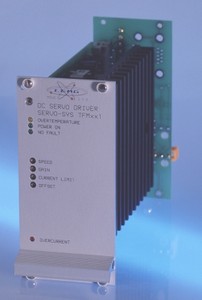

TFMxx1
| technic: |
switching
amplifier
(4 quadrant) P-MOS and IGBT |
| power
: |
50 to 3000 Watt |
| supply: |
24 to 180 Volt (single) |
| mech.
construction: |
Euro-card 3HE / 12 TE
(100x160 cm) |
| axis: |
1 |
| connector: |
connector
(32 pin)
DIN41612D |
| short
circuit: |
the
output is short circuit protected
( also against ground ) |
| EMC: |
There
are no influences (EMC) between two or more TFMxx1 which are mounted
in the same rack |
| monitoring: |
system
check with LED on the front panel, as well as a
fault output |
| adjustment: |
all
relevant parameters are adjustable on the front panel |
| further
information: |
TFMxx1.pdf |
|

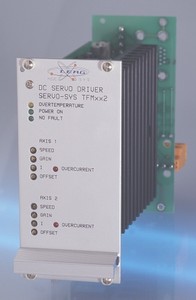

TFMxx2
| technic: |
switching
amplifier
(4 quadrant) P-MOS and IGBT |
| power : |
50 to 1000 Watt |
| supply: |
24 to 120 Volt (single) |
| mech.
construction: |
Euro-card 3HE / 12 TE
(100x160 cm) |
| axis: |
2 |
| connector: |
connector
(32 pin)
DIN41612D |
| short
circuit: |
the
outputs are short circuit protected
( also against ground ) |
| EMC: |
There are no
influences (EMC) between two or more TFMxx2 which are mounted in the
same rack |
| monitoring: |
system
check with LED on the front panel, as well as a
fault output |
| adjustment: |
all
relevant parameters are adjustable on the front panel |
| further
information: |
TFMxx2.pdf |
|

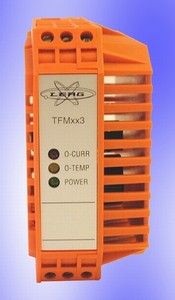

TFMxx3
"snap-on" module
to be used on a
module bar
Art. Nr.
80363 |
TFM 123-01-DCD
12 VDC
1,5 A cont, 3 A peak |
Art. Nr.
80364 |
TFM 183-01-DCD
18 VDC
1,5 A cont, 3 A peak |
Art. Nr.
80365 |
TFM 243-01-DCD
24 VDC
1,5 A cont, 3 A peak |
| further
information: |
TFMxx3.pdf |
|
