AC servo amplifier
The

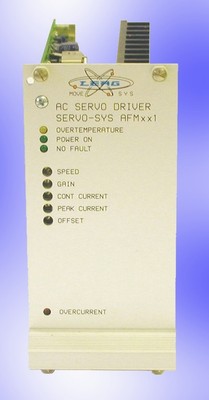

AFMxx1 servo amplifier was specially developed as a rack module
for AC - brushless motors. To use the driver, the motor must be equipped
with the necessary LEAG encoder and decoder (sin
/ cos
/ speed). The servo amplifier can be assorted with the optional LVR01A back plane . In addition with this special board, it is possible to use the cycle / direction / reset commands as used for stepper motor drivers. Technical
data: AFMxx1en.pdf
|
The AFMxx1 is available in 3 different types:
Item nr. 85005 | 60 VDC - 6 Ampere |
Item nr. 85010 | 120 VDC - 6 Ampere |
Item nr. 85020 | 180 VDC - 6 Ampere |
